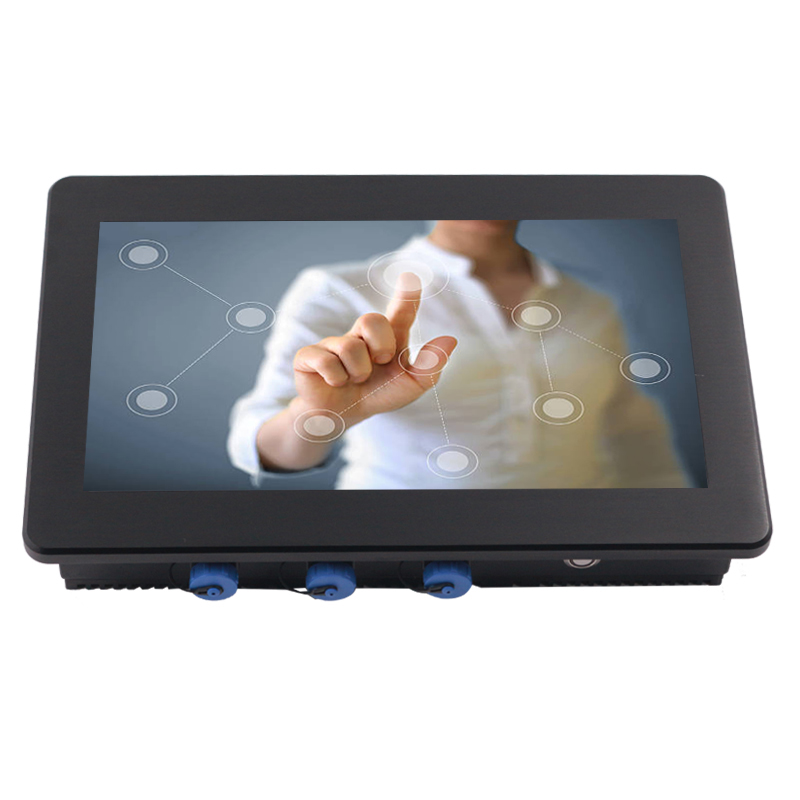

Aluminum Alloy Ip65 Waterproof Panel PC Capacitive Touchscreen

Name: Aluminum Alloy Ip65 Waterproof Panel PC Capacitive Touchscreen
Brand: INNODA
Price: 1 USD

China Aluminum Alloy Ip65 Waterproof Panel PC Capacitive Touchscreen wholesale

Brand Name : INNODA

Model Number : IND101PC

Certification : CE,RoHS, FCC

Place of Origin : Shenzhen,China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : 12working days upon receive the payment

Packaging Details : 1pc/carton weight: 4kgs/pc, packing size: 44×37×17cm

Type : 10inch Waterproof Panel Pc

Aspect ratio : 16:10

Touchscreen : Capacitive touchscreen

CPU : Intel Quad-core J1900

IP grade : Front Panel IP65

WIFI : Yes

Warranty : 12 months

Material : Aluminum alloy+Metal

Contact Now

10-Inch Front Panel Ip65 Waterproof Panel Pc With Intel J1900 Cpu

Features
1. Industrial Waterproof Panel Pc Which can work in -20-70C environment

2. 350Cd/m2 brightness

3. Front IP65 waterproof

4. Interface with sealed waterproof cap

Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) Capacitive, IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB

Configuration

Processor System	CPU	Intel Quad-core J1900/2.0 GHz
	Memory	4GB (up to 8G)
	Storage	64G SSD(up to 1TB)
	Operation System	WIndows 7/8/10 OS(trial version)
LCD Panel Characteristics	Screen Size	10.1’’ Lcd Panel
	Touchscreen Type	Capacitive touch screen / Resistive touch option
	Resolution	1280(H)x800(V)
	Aspect Ratio	16:10
	Brightness	250cd/m2
	Contrast Ratio	500:1
	Response Time	10 msec
I/O Interface	COM	1*RS232(RS485/RS422 optional)
	USB	2xUSB2.0
	LAN	1xRJ45, 10/100/1000 Mbps
	VGA	-------
Optional	WIFI
	8-36V wide range voltage
	Brightness control button
	1000nits High Brightness for sunlight readable
	Front waterproof / Full sealed Waterproof
Power Supply	Single 12 V DC power input, Max 18W Power Consumption
Accessories	8A Power Adapter with cable
Working Temperature	-20~70° C
Other Information	Material		Aluminum+Metal frame
	Color		Black/Silver/White
	Mounting		VESA mount / Embedded
Certificates	CE/ RoHS / FCC

Detailed Image

Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference

Aluminum Alloy Ip65 Waterproof Panel PC Capacitive Touchscreen

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
With own designer and electric engineers, customation products is oaky for us.
